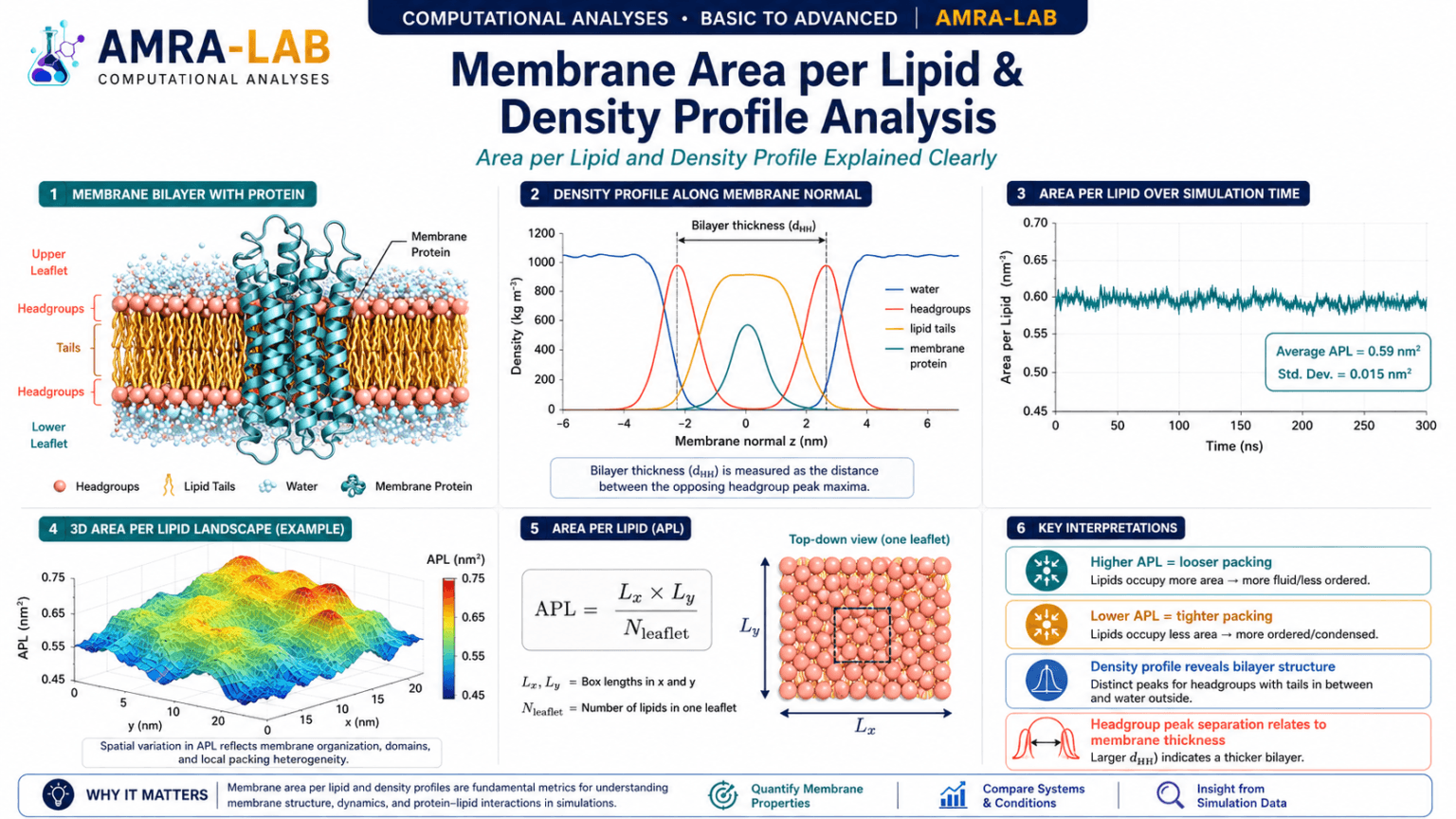

Membrane Area per Lipid & Density Profile Analysis
A practical guide to membrane packing, leaflet organization, bilayer thickness, component distributions, protein insertion, and structural equilibration after molecular dynamics simulation.
02
Bilayer organization
Density profiles show where lipid heads, tails, water, ions, and proteins are distributed along the membrane normal.
03
Equilibration evidence
Together, APL and density profiles help assess membrane relaxation, thickness, symmetry, and insertion.
1. What are Area per Lipid and Density Profiles?
Area per Lipid (APL)
APL is the projected membrane area in the xy plane divided by the number of lipids in one leaflet. It describes lateral lipid packing.
বাংলা: APL দেখায় একটি leaflet-এ প্রতিটি lipid গড়ে কতটুকু lateral area দখল করছে।
Membrane Density Profile
A density profile shows how selected components are distributed along x, y, or usually z, the membrane-normal direction.
বাংলা: Density profile দেখায় membrane-এর z-axis বরাবর water, headgroup, tail, protein বা ion কোথায় কত ঘনভাবে আছে।
2. Structural significance
Lipid packing
Low APL indicates tighter lateral packing; high APL indicates looser packing or greater expansion.
Bilayer thickness
The distance between opposing headgroup-density peaks provides an operational membrane-thickness estimate.
Protein insertion
Protein and lipid density overlap helps locate transmembrane domains and detect asymmetric insertion.
বাংলা: এই দুই analysis membrane compactness, thickness, leaflet symmetry, protein insertion এবং equilibration বোঝার জন্য একসাথে খুব গুরুত্বপূর্ণ।
3. How is Area per Lipid calculated?
Obtain the projected box area
For a membrane normal along z, calculate Axy = Lx × Ly for every trajectory frame.
Count lipids per leaflet
For a symmetric bilayer with N total lipids, Nleaflet is often N/2. Asymmetric bilayers require separate counts.
Correct for protein area when necessary
In membrane-protein systems, naive box area divided by lipid count can overestimate lipid area because part of the xy plane is occupied by protein.
Average only after equilibration
Report the mean, standard deviation, block uncertainty, and analyzed time interval.
Important: There is no single universal “correct” APL. It depends on lipid composition, temperature, force field, pressure coupling, cholesterol content, and membrane phase.
4. Live membrane-packing model
Bilayer expansion and APL
40.9 nm²Projected area
0.64 nm²Area per lipid
BalancedPacking state
বাংলা: Box-এর xy area বাড়লে একই সংখ্যক lipid-এর জন্য APL বাড়ে; area কমলে lipid packing tighter হয়।
Publication-style density profile
Phosphate/headgroupHydrocarbon tailsWaterProtein
বাংলা: Headgroup peak দুটির মধ্যবর্তী দূরত্ব membrane thickness-এর একটি practical estimate দেয়; water density bilayer center-এ কমে যায়।
5. How density profiles are calculated and interpreted
Center the bilayer
Center the membrane for each frame to prevent bilayer drift from smearing the profile.
Choose the membrane normal
Most bilayers are aligned with z, but the correct axis must match the actual membrane orientation.
Divide the box into slices
Mass, number, charge, or electron density is accumulated in thin slabs along the selected axis.
Average over frames
The final curve represents the time-averaged spatial distribution of each selected component.
| Feature | Typical meaning | Important caution | বাংলা |
|---|---|---|---|
| Two headgroup peaks | Opposing leaflets and bilayer thickness | Peak position depends on selected headgroup atoms | দুই leaflet-এর অবস্থান |
| Tail maximum near center | Hydrophobic core | Tail-group selection changes profile width | Membrane-এর hydrophobic core |
| Water minimum at center | Low water penetration | Nonzero water may indicate pores or defects | Center-এ পানি কম থাকা |
| Protein overlap | Insertion depth and transmembrane span | Global averaging can hide local tilt | Protein কোথায় inserted |
| Asymmetric peaks | Leaflet asymmetry, composition, curvature, or insertion | Could also arise from insufficient centering | Leaflet asymmetry |
6. Interpretation rules
APL increases
- Looser lipid packing
- Greater lateral expansion
- Possible membrane thinning
- Possible disorder, heating, insertion, or composition effect
APL decreases
- Tighter lipid packing
- Possible membrane thickening
- Cholesterol-induced condensation
- Possible gel-like ordering or over-compression
Do not interpret APL alone: Combine it with bilayer thickness, deuterium order parameters, density profiles, lipid tilt, diffusion, and visual inspection.
7. Common mistakes
APL mistakes
- Dividing by total lipids instead of lipids per leaflet
- Ignoring asymmetric leaflet composition
- Ignoring protein-projected area
- Averaging before the bilayer equilibrates
- Comparing systems at different temperature or pressure-coupling settings
Density-profile mistakes
- Not centering the membrane
- Using the wrong membrane-normal axis
- Using too few or too many slices without justification
- Symmetrizing an intrinsically asymmetric system
- Ignoring bilayer undulations and box fluctuations
বাংলা: APL-এর denominator ভুল নেওয়া, protein area ignore করা, বা bilayer center না করে density বের করা—এইগুলো সবচেয়ে common error।
8. GROMACS analysis workflow
Projected box area for APL
gmx energy -f md.edr -o box_xy.xvg # Select Box-X and Box-Y, then calculate Axy(t) = Box-X(t) × Box-Y(t) # APL(t) = Axy(t) / Nlipids_per_leaflet
A small Python, R, spreadsheet, or Grace workflow can multiply Box-X and Box-Y frame-by-frame and divide by the correct leaflet lipid count.
Density profile across z
gmx trjconv -s md.tpr -f md.xtc -o membrane_centered.xtc -pbc mol -center gmx density -s md.tpr -f membrane_centered.xtc -n index.ndx \ -o density_z.xvg -d Z -sl 200 -dens mass -center
Use suitable index groups for water, lipid headgroups, tails, ions, and protein. The current GROMACS documentation notes that centering is especially important for bilayers because box and membrane fluctuations can smear density profiles.
Membrane-protein warning: APL from raw box area is not strictly the lipid-only area when a protein occupies part of the xy plane. State clearly whether you used uncorrected box APL or a protein-area correction.
9. What should be reported?
Lipid composition and number of lipids in each leaflet.
Temperature, pressure coupling, and membrane-normal axis.
Equilibration period excluded from analysis.
Whether protein area was corrected in APL.
Mean APL, variability, uncertainty, and time window.
Density type: mass, number, charge, or electron.
Groups, atom selections, centering, and symmetrization.
Number of slices and density-profile averaging interval.
Definition used for membrane thickness.
Companion analyses supporting interpretation.
Final interpretation rule
Area per lipid measures lateral membrane packing, while density profiles measure spatial organization across the membrane normal. Together they provide complementary evidence for bilayer equilibration, thickness, symmetry, insertion, and structural response—but neither should be interpreted without membrane composition, simulation conditions, and supporting analyses.
বাংলায় মূল কথা: APL membrane কতটা tightly packed তা দেখায়, আর density profile membrane-এর ভেতরে কোন component কোথায় আছে তা দেখায়। দুইটি analysis একসাথে ব্যবহার করলেই সবচেয়ে নির্ভরযোগ্য conclusion পাওয়া যায়।
